Specification:

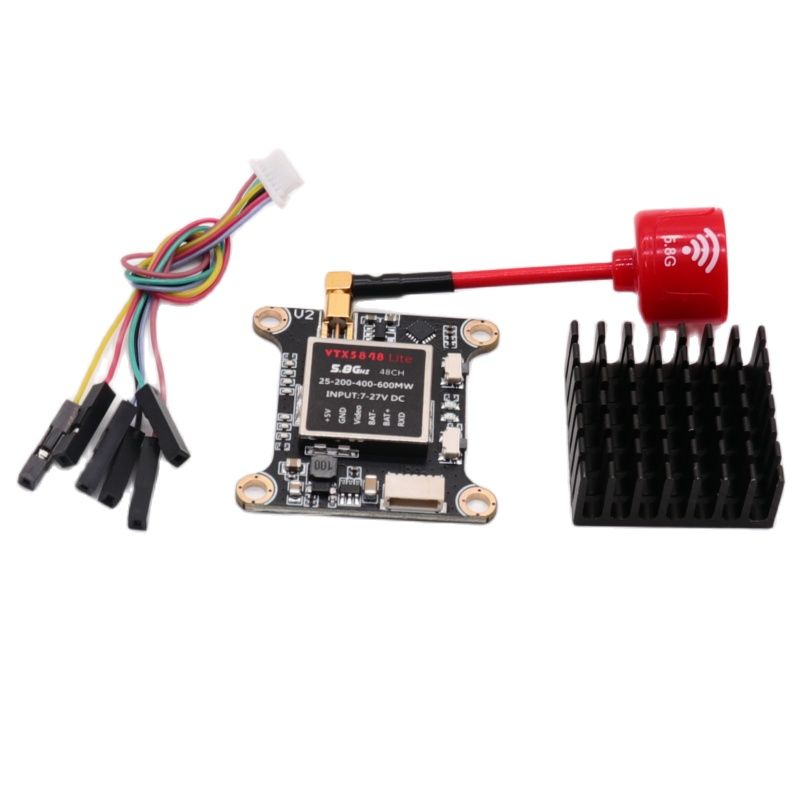

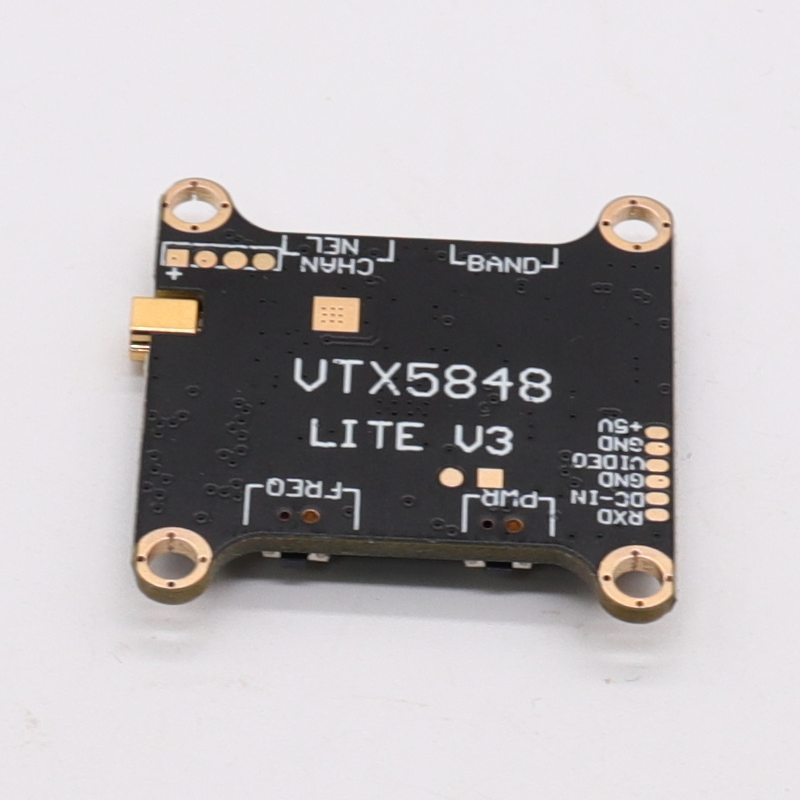

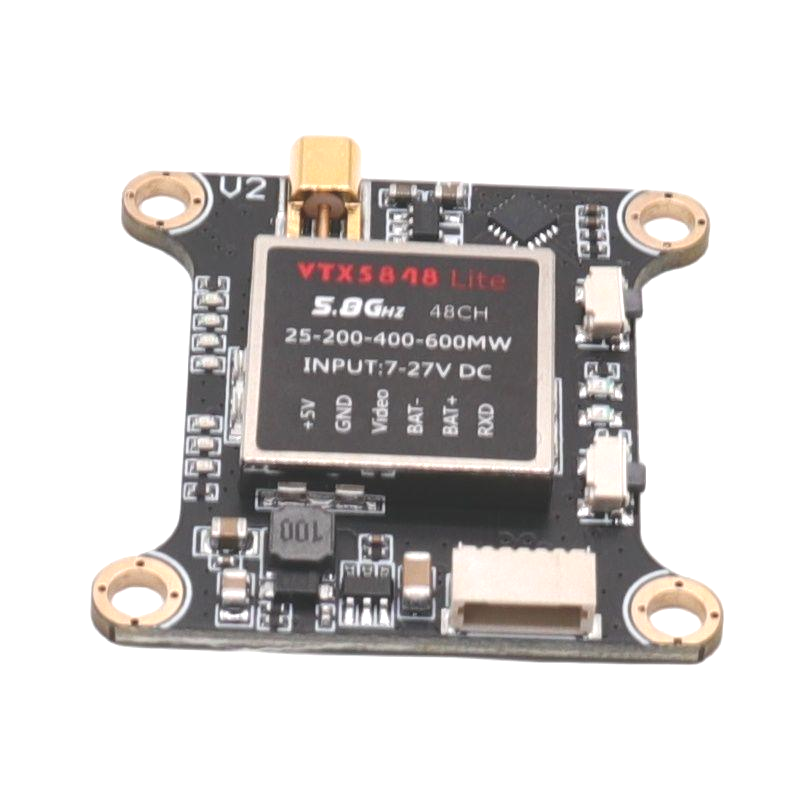

Item name: VTX5848 LITE FPV video transmitter
Input voltage: DC 7-27V
Input current: 3s or 4s battery, 600mW=360 MA±10MA
Output voltage: DC 5V 1A
Output power: 25/100/200/400/600mW switchable
Channel: 48CH
Frequency switch: manual button/OSD (simultaneous support)
Connector: MMCX
Size: 36x36x9mm
Mounting hole: 30.5×30.5mm, M3
Features:
-Stable output power, long transmission distance

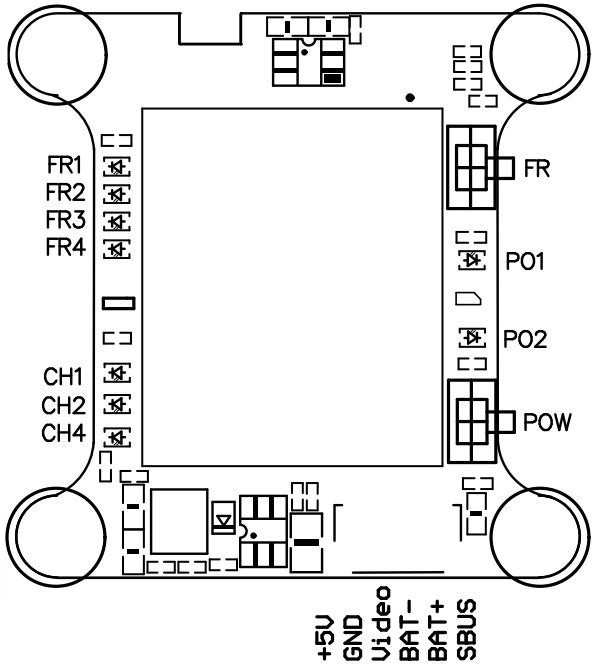

-Fast 5-speed power switch, independent two red indicator, indicating the current output power 25/ 200/ 400/ 600MW

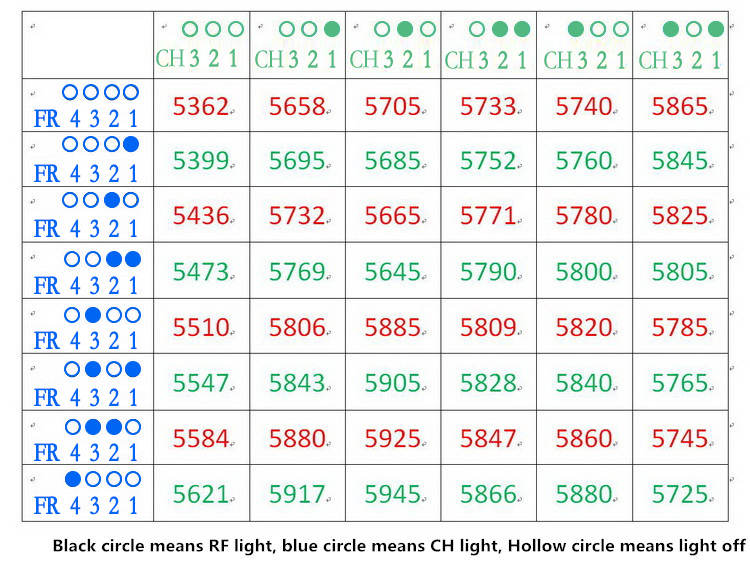

-Using 4(blue)*3(green) LED display 48 channel
-Support OSD signal remote frequency control, support PIT mode ( omW output power only can be open in OSD)
-With power filter
-Antenna using MMCX to SMA reducing the space
-Strong power chip, input up to 27V, output 5V/1A low ripple, less interference
-30.5mm*30.5mm mounting hole distance, suitable for CC3D, NAZE32, F3, F4, F7 flight controller
FPV Camera Item Specifics:
Sensor: 1/2. 7 800TVL CCD
Resolution: D1 1080P
Len: 5MP 2.1mm
Video formats: PAL / NTSC (OSD adjustable Internal)
Signal to noise ratio> 60Db (AGC OFF)
Electronic shutter: PAL: 1 / 50-100,000, NTSC: 1 / 60-100,000
Automatic gain control: YES
Backlight compensation: YES
Illumination intensity: 0.001Lux / 1.2F
Automatic gain control: adjustable
Backlight compensation: adjustable
Power: DC 5V-22V
Shell material: Aluminum alloy
Dimension: 28mm * 26mm * 28mm
Net Weight: 18g
Feature:
Upgraded Mista 800TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.
