Overview

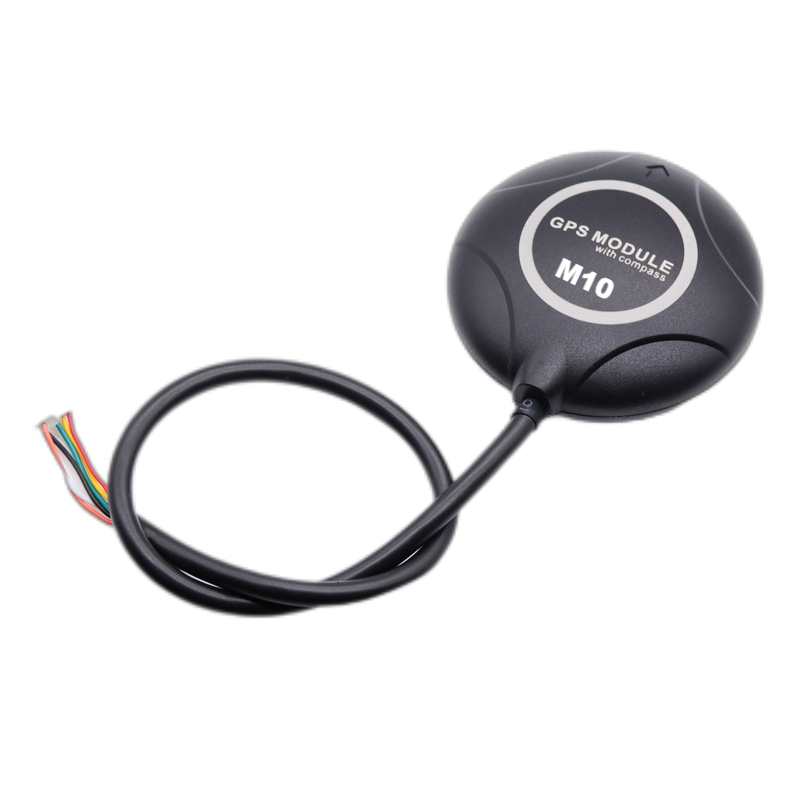

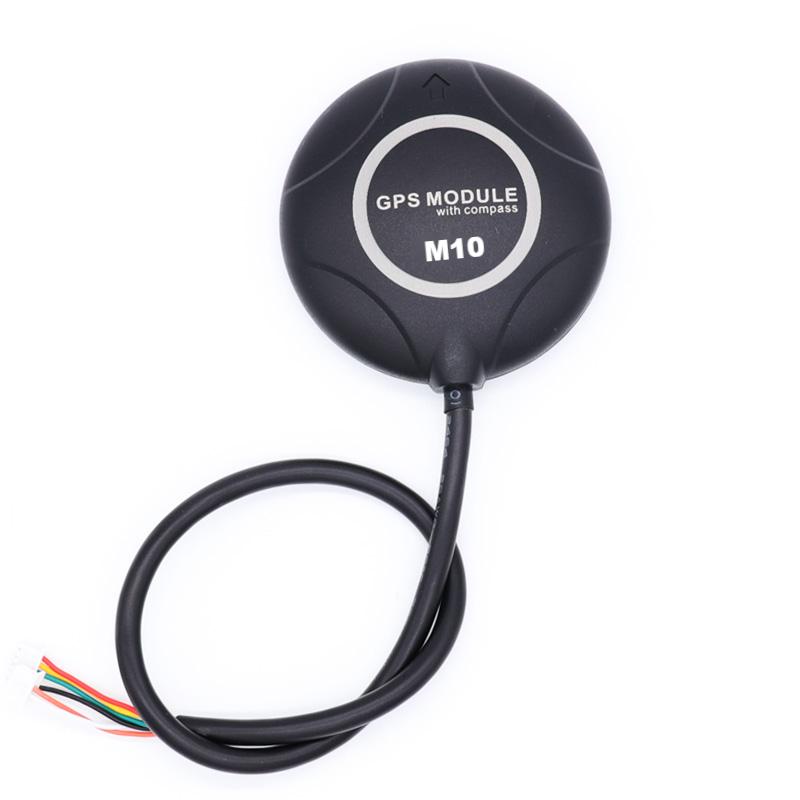

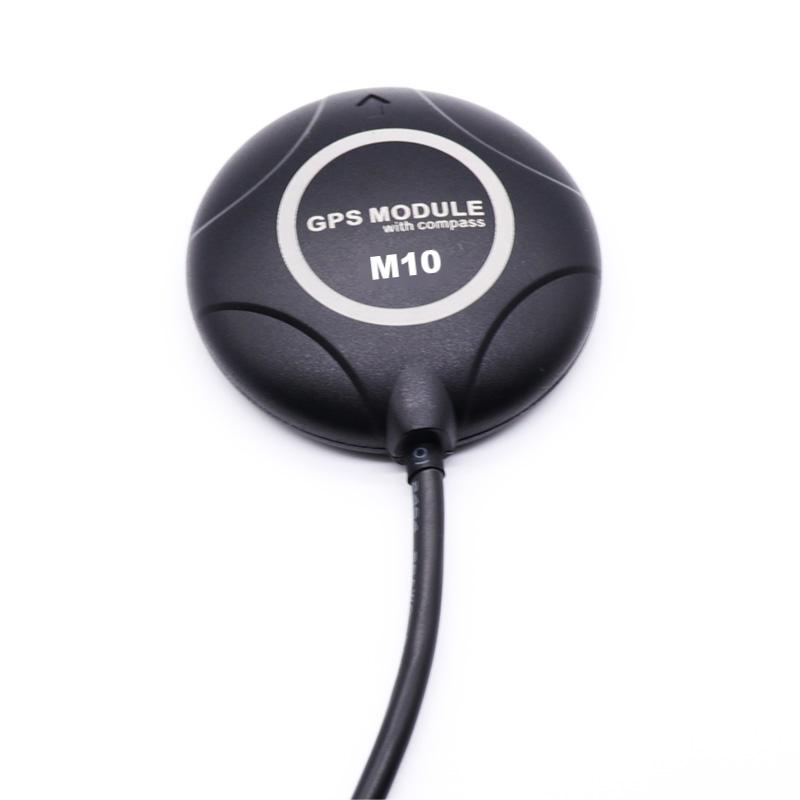

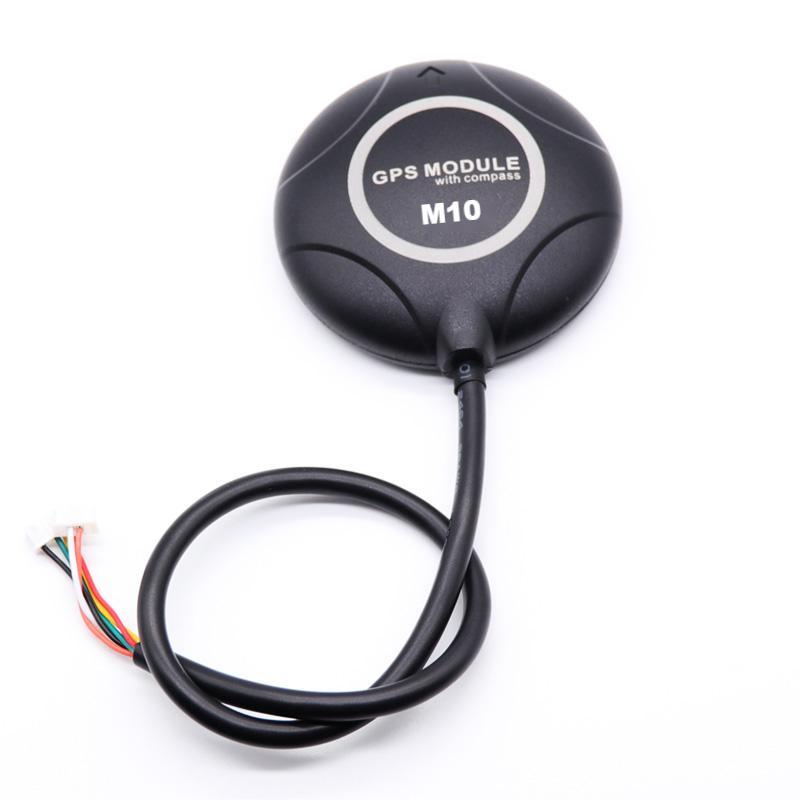

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
It also comes with the IST8310 compass.This module ships with a baud rate of 115200 5Hz.
The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Firmware Support for M10 GPS:
- PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.
Specification
M10 GPS M9N GPS GNSS Receiver Ublox M10 Ublox M9N Number of Concurrent GNSS Up to 4 GNSS Up to 4 GNSS BeiDou BeiDou Galileo Galileo GLONASS GLONASS GPS GPS QZSS QZSS Frequency Band GPS L1 GPS L1 Galileo E1 Galileo E1 GLONASS L1 GLONASS L1 BeiDou B1 BeiDou B1 SBAS L1 SBAS L1 QZSS L1 QZSS L1 Compass IST8310 IST8310 Output Protocol UBX (U-blox) UBX (U-blox) NMEA NMEA Accuracy 2.0m CEP 1.5m CEP Nav. Update Rate Up to 25 Hz (single GNSS), Up to 25 Hz (4 concerrent GNSS) Up to 10 Hz (4 concurrent GNSS) GNSS Augmentation System EGNOS, GAGAN, MSAS and WAAS EGNOS, GAGAN, MSAS and WAAS QZSS: L1S QZSS: L1S Default Baud Rate 115200 115200 Input Voltage 4.7-5.2V 4.7-5.2V Port Type JST-GH-6P JST-GH-6P Antenna 25 x 25 x 4 mm ceramic patch antenna 25 x 25 x 4 mm ceramic patch antenna Power consumption Less than 200mA @ 5V Less than 200mA @ 5V Operating Temperature -40~80C -40~80C Dimension φ50 x14.4 mm φ50 x14.4 mm Weight 32g 32g Cable Length 26cm (42cm cable purchase separately) 26cm (42cm cable purchase separately)
