Hackrf One

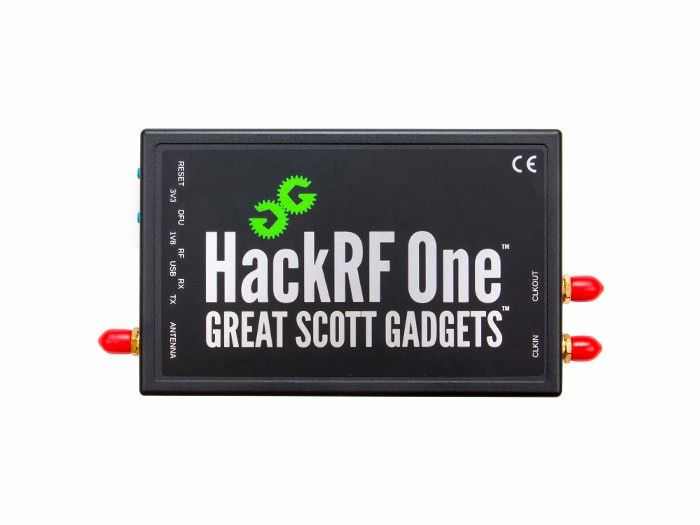

HackRF One, from Great Scott Gadgets, is a Software Defined Radio (SDR) peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz, designed to enable test and development of modern and next-generation radio technologies. HackRF One covers many licensed and unlicensed ham radio bands. HackRF One is an open-source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.
HackRF One works as a sound card of the computer. It processes Digital Signals to Radio waveforms allowing the integration of large-scale communication networks. It is designed to test, develop, improvise and modify the contemporary Radio Frequency systems.
HackRF One has an injection-molded plastic enclosure and ships with a micro USB cable. An antenna is not included. ANT500 is recommended as a starter antenna for HackRF One.
HackRF One is a test equipment for RF systems. It has not been tested for compliance with regulations governing the transmission of radio signals. You are responsible for using your HackRF One legally.

Features

• 1 MHz to 6 GHz operating frequency

• half-duplex transceiver

• up to 20 million samples per second

• 8-bit quadrature samples (8-bit I and 8-bit Q)

• compatible with GNU Radio, SDR#, and more

• software-configurable RX and TX gain and baseband filter

• software-controlled antenna port power (50 mA at 3.3 V)

• Open-source hardware

• SMA female antenna connector

• SMA female clock input and output for synchronization

• convenient buttons for programming

• internal pin headers for expansion

• Hi-Speed USB 2.0

• USB-powered

Documents

HackRF One Wiki

Source code and hardware design files

Github

FAQ

Learning SDR with HackRF
